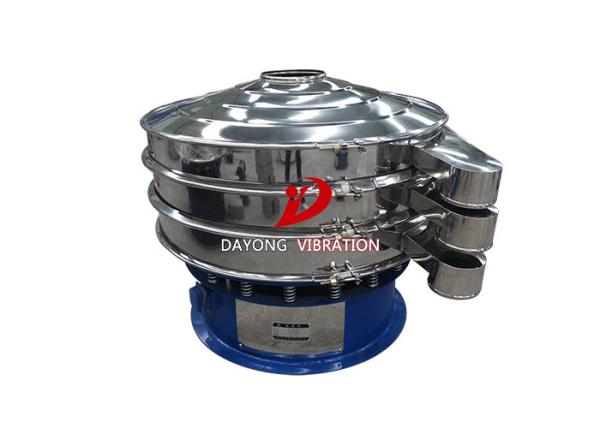

Stainless Steel Round Flour Screen Shaker Separator With 1.5kw
Power 1 - 3t/H Capacity
Product Introduction
The vibrating screen is a high-precision fine powder screening
machine with low noise and high efficiency. It takes 3-5 minutes to
change the screen quickly. It is fully enclosed and suitable for
screening and filtering of particles, powder and mucilage. The
vibrating screen is made up of an upright motor as an excitation
source. The upper and lower ends of the motor are equipped with an
eccentric weight to convert the rotary motion of the motor into a
horizontal, vertical, and inclined three-dimensional motion, and
then transmit this motion to the screen surface. Adjusting the
phase angles of the upper and lower ends can change the trajectory
of the material on the screen surface.
Product Advantages
1. Fully enclosed, anti-dust pollution.
2. Different pieces of material automatically excluded, to achieve
automation and high efficiency.
3. Discharge mouth arbitrary adjustment, easy assembly line.
4. Unique screen frame design, long life, easy to replace, easy to
clean up.
5. Built in bouncing ball to prevent clogging the screen.
6. Small size, light weight.
7. Low energy consumption, energy conservation.
Using Industry
1. Size classification: separation of particles into groups of
comparable size from the materials.
2. Gravity filtering: removal of solids from liquids and slurry.
3. Product reclamation: removal of the solids from waste product or
clarification of waste liquor for further use.
4. Screening: separation of a few oversize particles from a
quantity of materials.
5. Liquid cleaning: cleaning of waste water or removing the solids
from recirculating liquid.
Technical Parameters
| Model | Power(kw) | Valid Diameter of screen(mm) | Volume(mm) | Layers |
DY-600-1S
DY-600-2S
DY-600-3S | 0.55kw | 550mm | 800*800*680
800*800*780
800*800*880 | 1
2
3 |
|
DY-800-1S
DY-800-2S
DY-800-3S | 0.75 kw | 750mm | 900*900*780
900*900*930
900*900*1080 | 1
2
3 |
DY-1000-1S
DY-1000-2S
DY-1000-3S | 1.5 kw | 950mm | 1160*1160*880
1160*1160*1030
1160*1160*1180 | 1
2
3 |
DY-1200-1S
DY-1200-2S
DY-1200-3S | 1.75 kw | 1150 mm | 1360*1360*980
1360*1360*1160
1360*1360*1360 | 1
2
3 |
DY-1500-1S
DY-1500-2S
DY-1500-3S | 2.2 kw | 1450mm | 1850*1850*1130
1850*1850*1330
1850*1850*1550 | 1
2
3 |
DY-1800-1S
DY-1800-2S
DY-1800-3S | 3 kw | 1750mm | 2200*2200*1360
2200*2200*1460
2200*2200*1680 | 1
2
3 |
Our Company
Xinxiang Dayong Vibration Equipment Co., Ltd. specializes in
manufacturing series of vibrating screen, and we could design,
develop and produce by ourselves. At present, the main range of
products include kinds of series of vibrating screens, vibrating
separator and filter, ultrasonic vibrating screens, sifting
machines, filtering machines, linear vibrating screens, testing
screens, screw conveyor, bucket elevator, honey processing machine,
grain cleaning machine, etc. We have our design team, and can
design machine according your requirement. If you have any needs or
questions, please don't hesitate to contact us, we shall be pleased
to be of service to you at all times.
FAQ
Q:What factors I need to get a quotation?
A: Material size and bulk density,height of discharge port, ideal
capacity for proper type is recommended. product material
requirement (carbon steel Q235A, stainless steel SUS304 or
SUS316,etc.) Voltage & Frequency(Hz) is also needed for a precise
quotation.
Q:What is the real delivery time of your factory?
A: 7 to 15 days for general series products, meanwhile, batches
products & customized products would need 30 days to 60 days based
on different situations.
Q: How do you ensure the quality of your products?
A: Generally, our equipment are the most durable type in the
industry, this is also the feature of the label impression of DZJX
for most of our customers at home or abroad.Skilled workers and
strict quality control system can ensure every machine with best
working performance.
Q: How do your after-sale service work if the product got damaged?
A: In the guarantee time 18 months, our general after-sale service
is changing the damaged parts for the customer, but if the damage
could be repaired by slight cost, we would wait for the customer's
bill for the fix cost and refound this part of cost.(note:
Vulnerable parts do not include.)
